Tested and Accredited To Australian Standard

      QBSI Wall  & Floor Panels Are Better Protected From Flood, Wind &  Fire

Insulated Roof HDFCB 50mm - 150mm and Form Work Panel PVC 17mm - 20mm

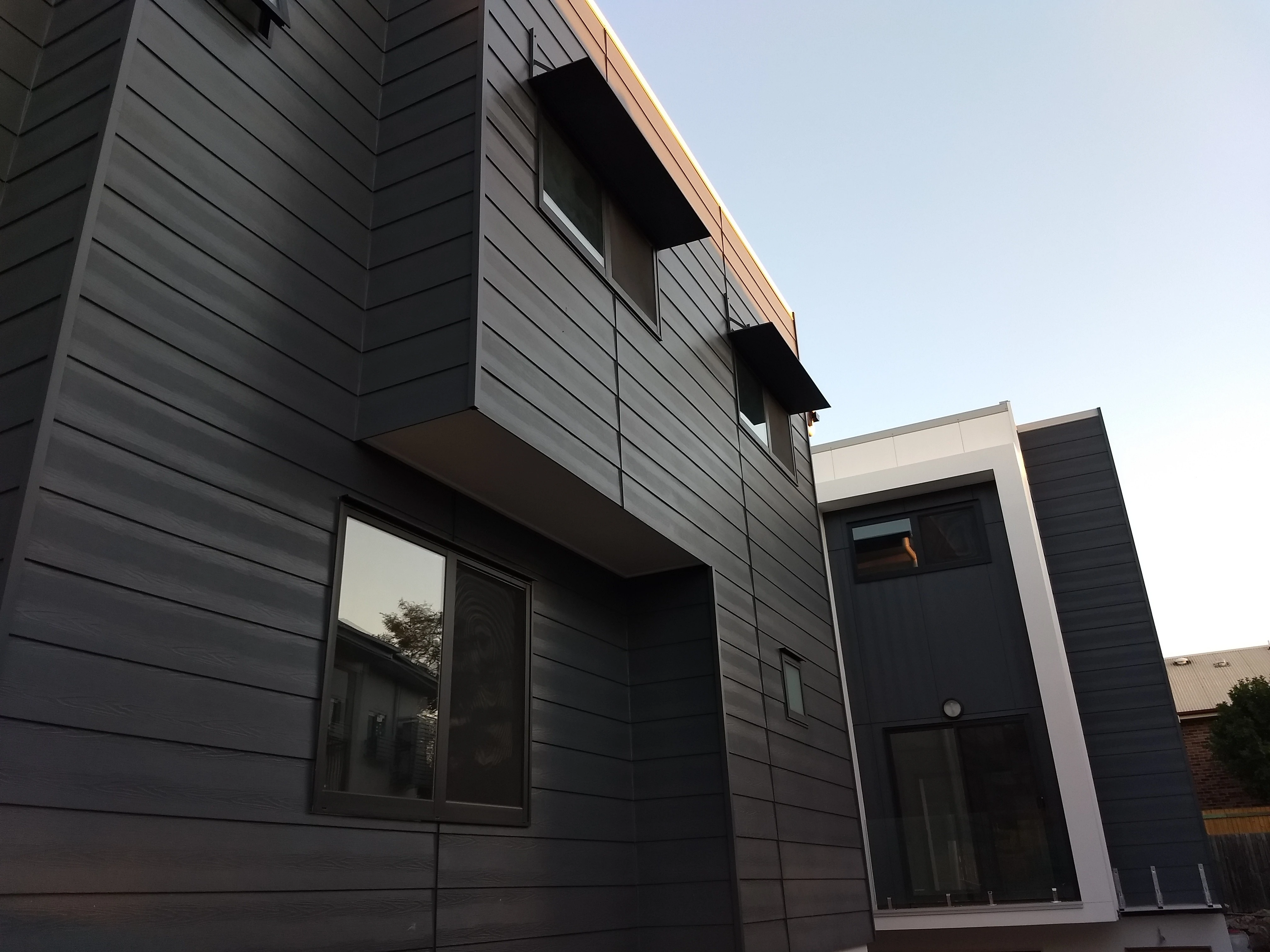

External Wall cladding 9 - 12mm
900 (W) x 2740 - 3040 (L)
Internal Wall Sheeting and Soffit
6mm x 1200 x 2440 - 3000
Shadow Line and Render
Sub-Floor and Retaining Wall
Fire Doors, Domestic and Commercial Ceiling
Wet areas and Decking
QBSI HD Board complies to BCA Standards:
1) Wet Bend Strength AS/NZS 4266.10A
2)  Laying 450 Centres over bearers and Joist design criteria in accordance with AS1684.1-1999, and structural timber design in accordance with AS1720.1-. 2010.  Minimum bearing lengths for support of bearers: 45mm on end supports
3) Apparent density 1.3g/cm3

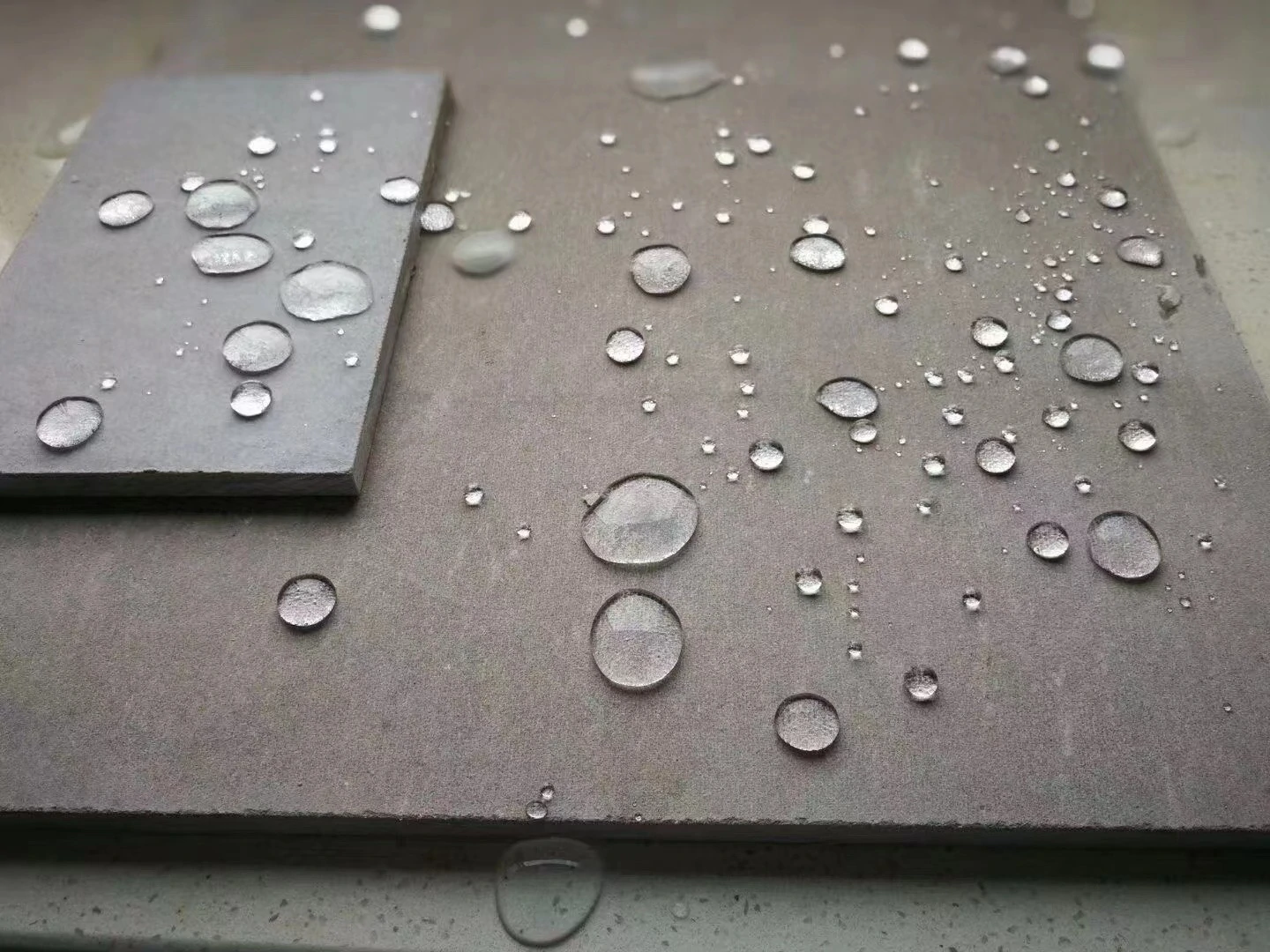

4) Water Resistant- AS/NZS 4266.
5) Formaldehyde emission AS/NZS 4266.16
6) 100 % Asbestos Free Serial Number 180115-Test Method AS4964 (2004).
7) Self Drilling Screws – AS3566, 1-2002
Installation of the QBSI MDFCB should be installed by licensed builder or carpenter to BCA Standards and  in accordance to suppliers installation manual.
Dimensions: 6mm x 1200 x 2440-3000, 9mm x 250 x 3000, 12mm x 900mm x 2440-3000
6mm x 900mm x 2740, 9mm x 900 x 2740, 18mm x 600mm x 2700mm (T&G)
Perfect Sheeting for Renovation & New Build as it is 100% Asbestos Free, Fire Ressistant, Water Resistant, Acoustic and R Rated for Energy Efficincy
